Supervised Classification Using Decision Trees

InterIMAGE performs supervised classification through the C4.5 decision tree classifier. This example shows how to perform a supervised classification, using the Top Down operator TerraAIDA_C45_Classifier.

???

In order to perform classification, the user must train the algorithm by providing samples of every class. In this way, the classification algorithm creates a decision tree and applies it into the set of objects, classifying them.

Firstly define your interest classes, and create nodes for them. All nodes must be in the same level, only one of them must have the TerraAIDA_C45_Classifier as Top Down Operator, and all the remaining nodes must have No Operator. Note: your interest classes must be with the option TopDown Multi-Class selected.

To perform the training step, you must enter the Samples Editor. Firstly select the node whose childs are the interes classes, and open the editor as in the figure:

Select one operator to perform segmentation (i.e. TerraAIDA_Baatz_Segmenter), and press Segment. After this, when the objects appear inside the image, select one interest class, and press Collect Samples. Then select all your samples to the interest class, and press Collect Samples again to stop the selection. Perform this for all your interest classes.

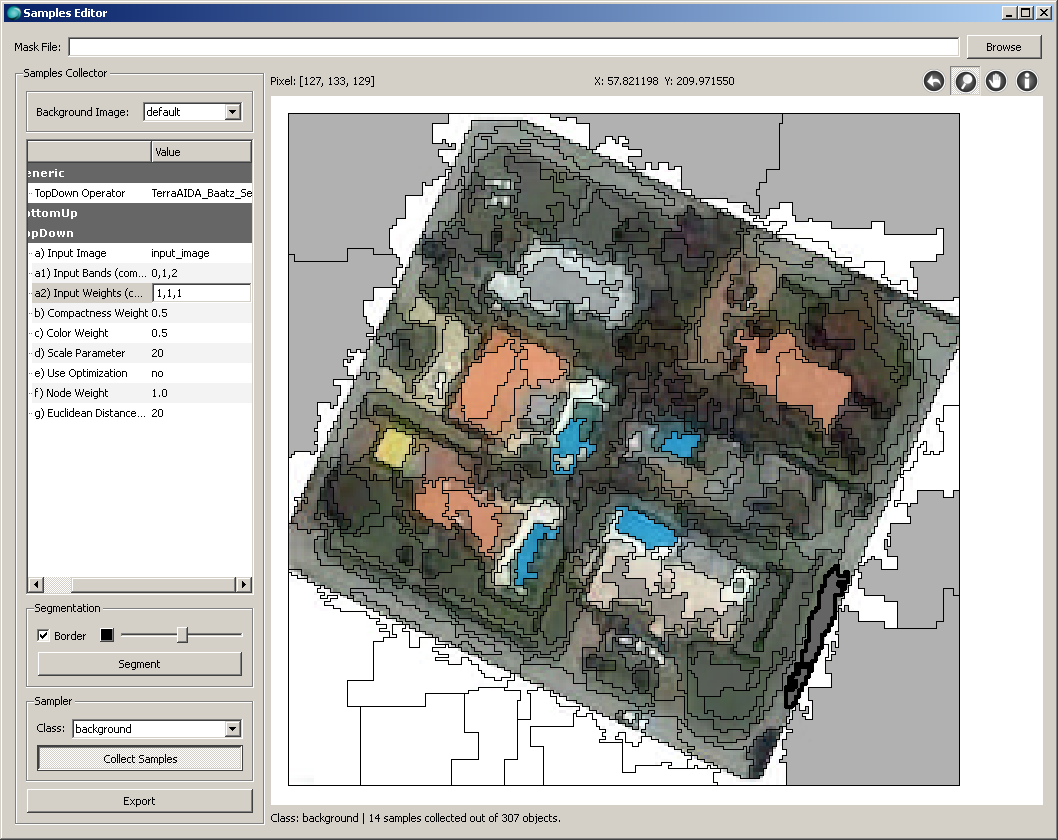

Note that your selected objects will be highlighted with the corresponding class:

After you selected your samples, you can export one shapefile with the training set, and all remaining elements. Press Export and one window to define attributes will open. Create your expressions to define your desired attributes, and select the shape file name to be exported:

In this example we exported the attributes ratio and mean for all image bands.

This shape file will be used as the training set, and also the set of objects to be classified. Now open the properties of your project in File, Edit Project. In the area Source, select your shape file, and add to your project.
